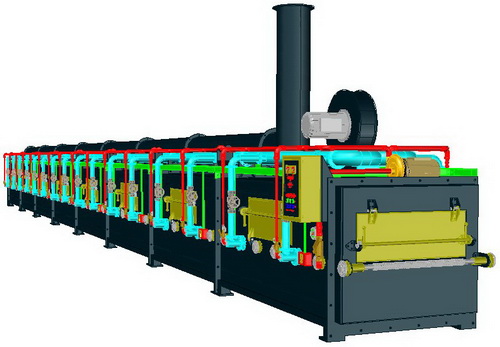

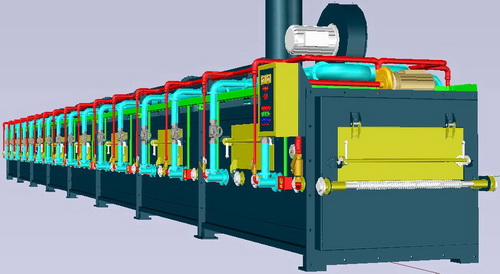

Inline Annealing Furnace

Model AF110

Inline Annealing Furnace

Model AF110

فرن تخمير السلك

موديل AF110

Technical specifications:

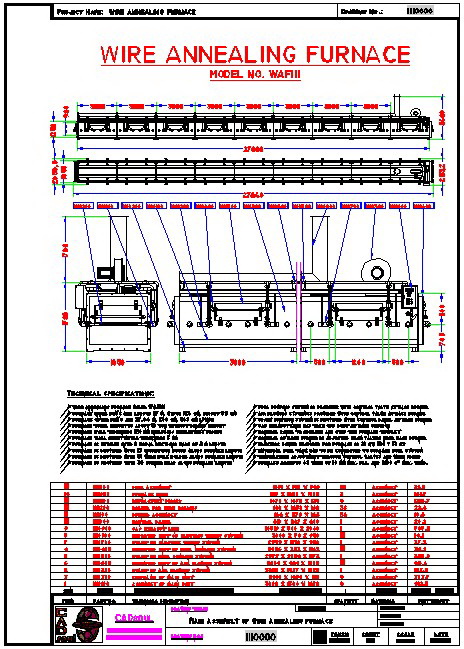

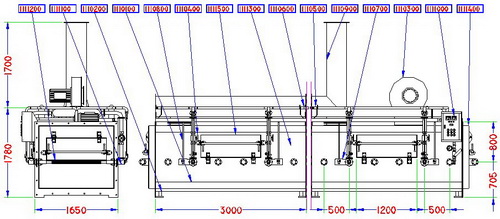

* wire annealing furnace model WAF111

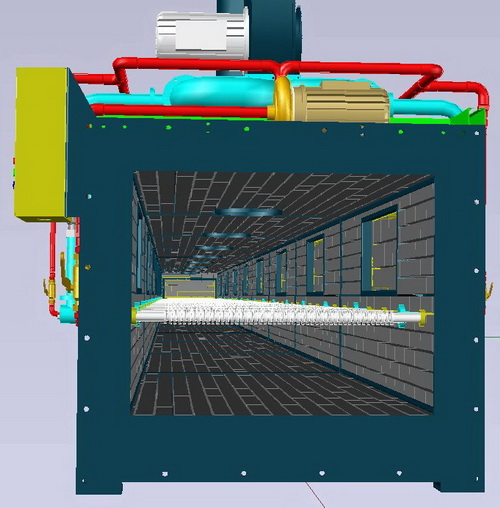

* furnace inner dim`s are length 27 m, width 124 cm, height 99 cm

* furnace outer dim`s are 27.64 m, 206 cm, 348 cm l*w*h

* furnace total weight is about 30 ton without bricks weight

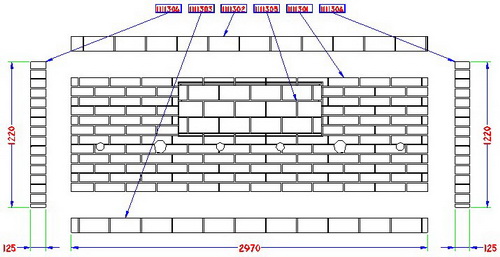

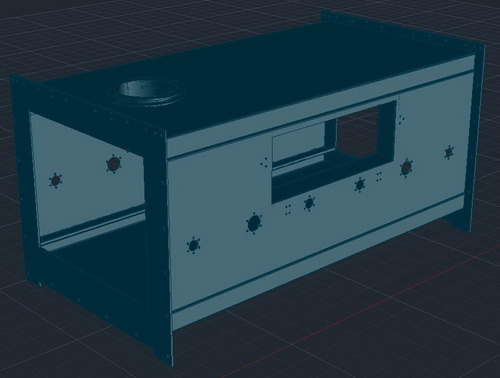

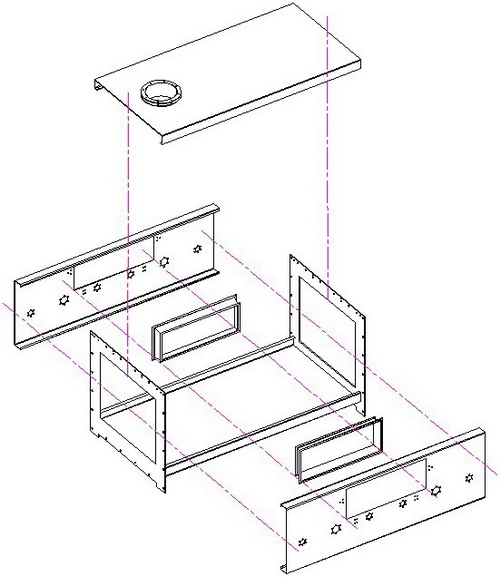

* furnace wall thickness 130 mm including refractory bricks

* furnace wall sheet metal thickness 5 mm

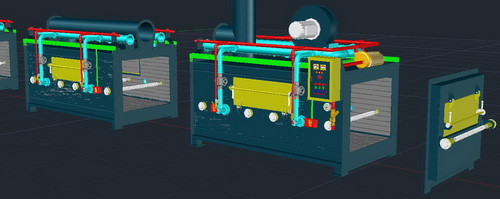

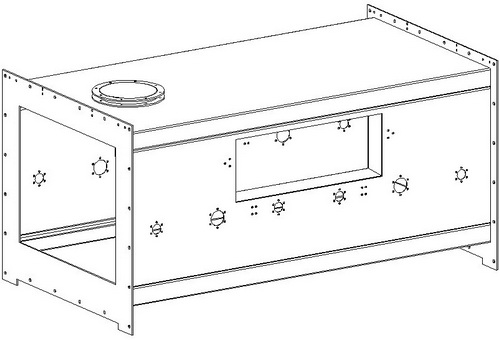

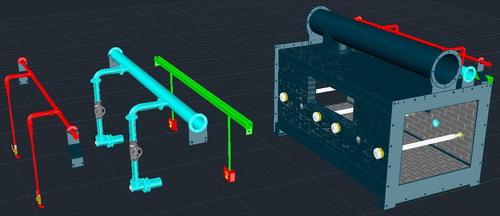

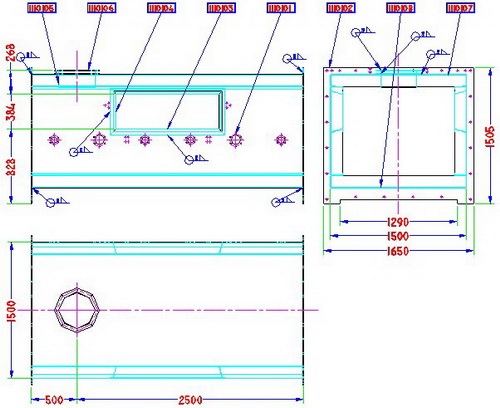

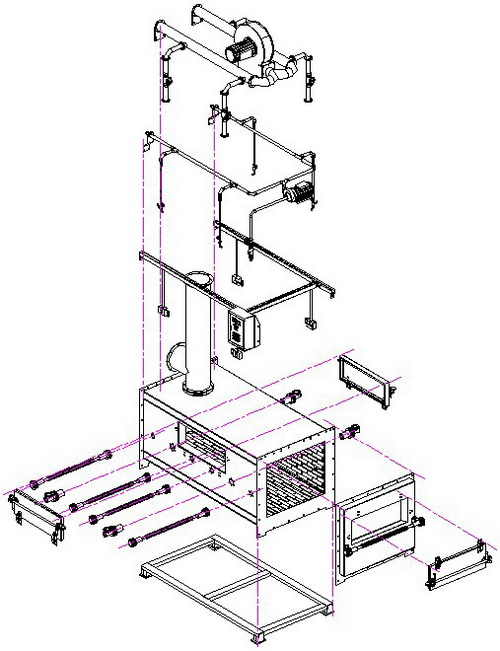

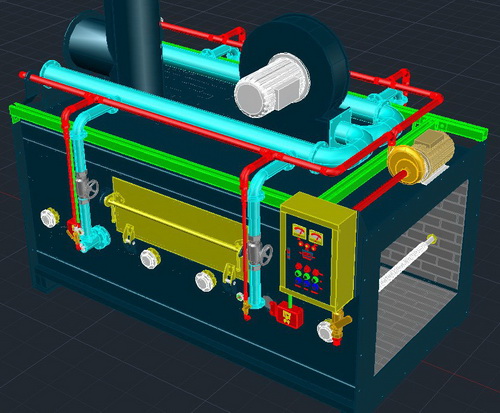

* furnace is devided into 9 equal sections each of 3 m length

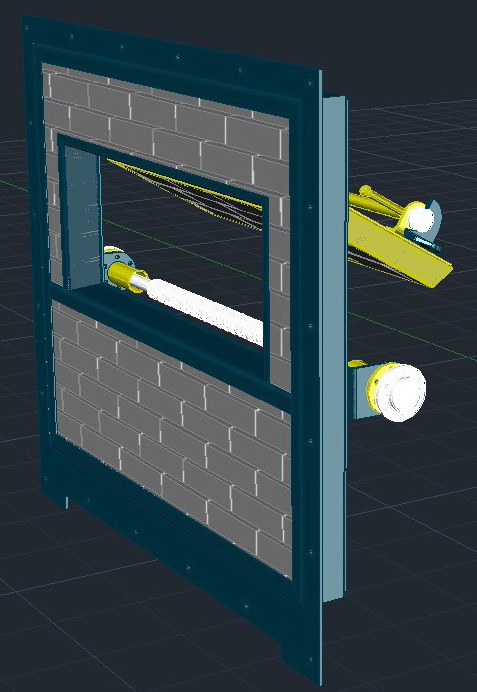

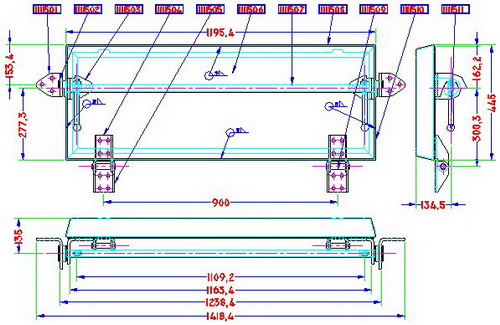

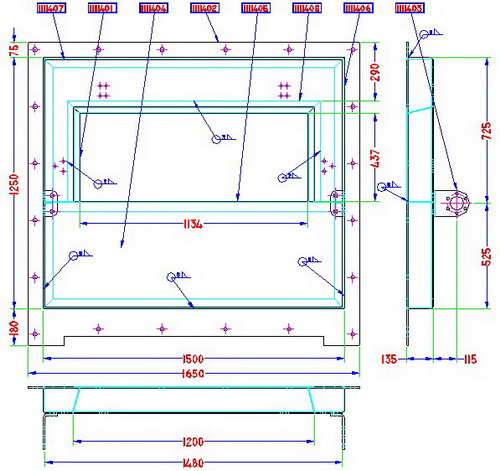

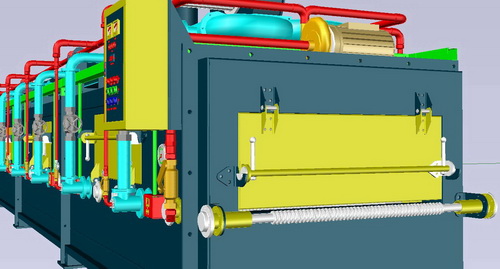

* furnace is provided with 20 inspection doors along furnace length

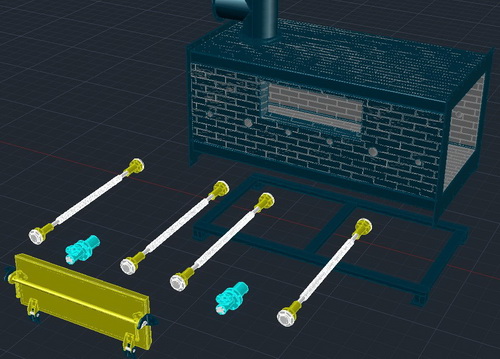

* furnace is provided with 38 wire roll holder along furnace length

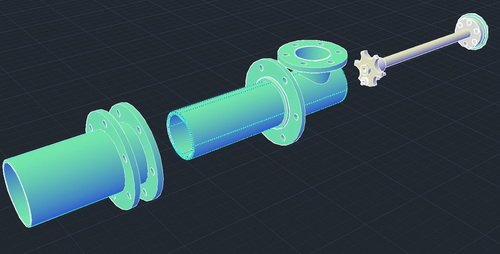

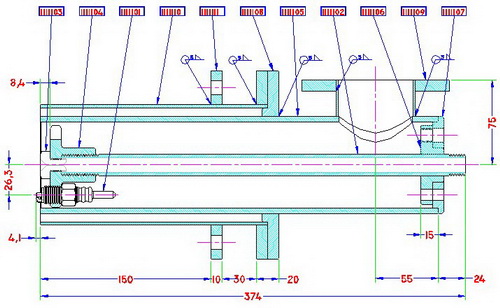

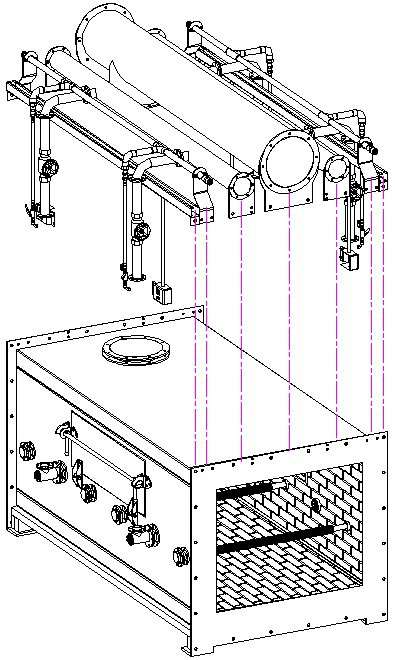

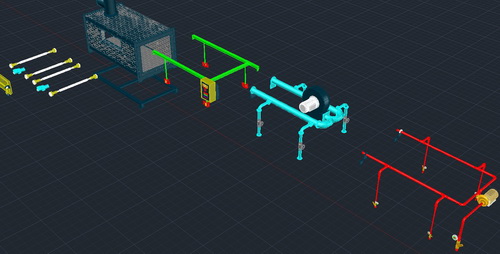

* furnace is provided with 36 burner head along furnace length

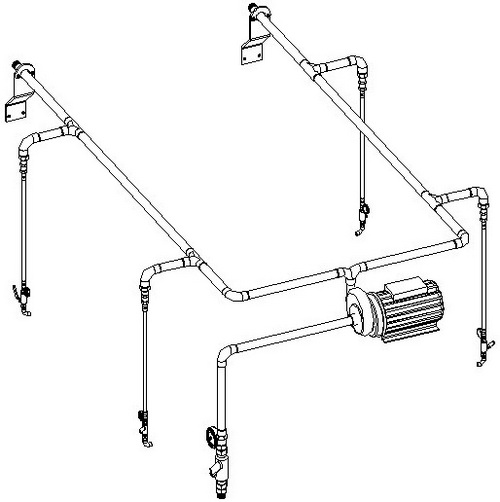

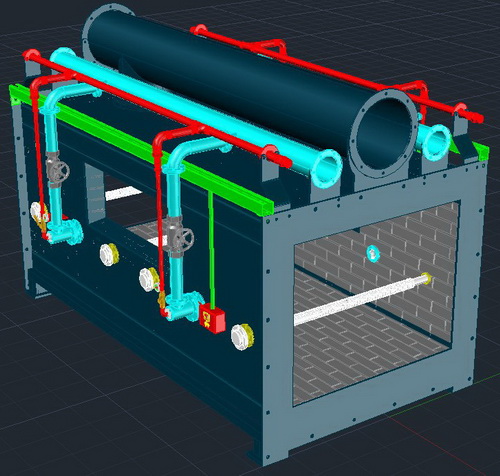

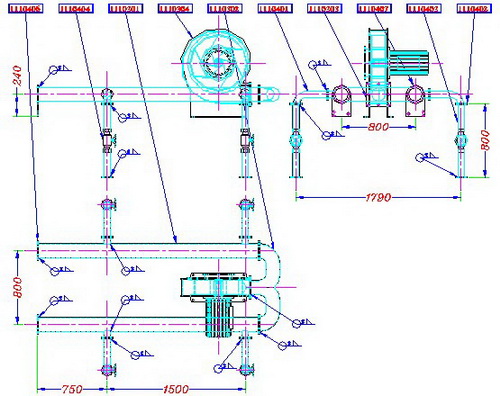

* fuel pumping system is proviede with control valve at each burner

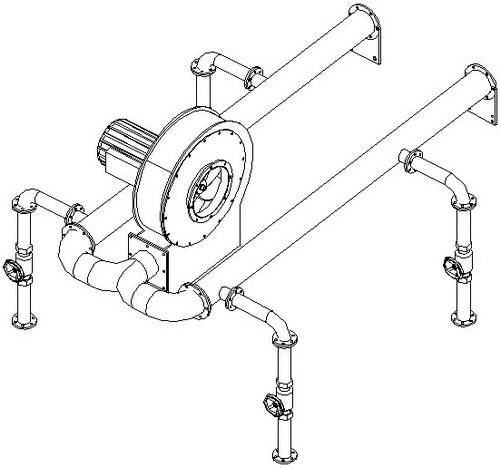

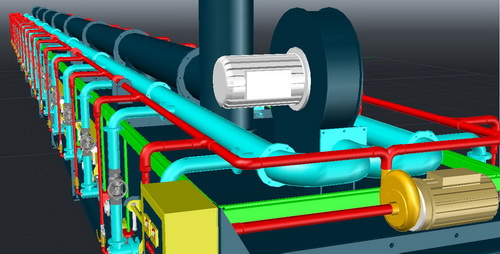

* air blowing system is provided with control valve at each burner

* spark ignition system is provided with control panel at each burner

* gas exhaust line has take off port at each section

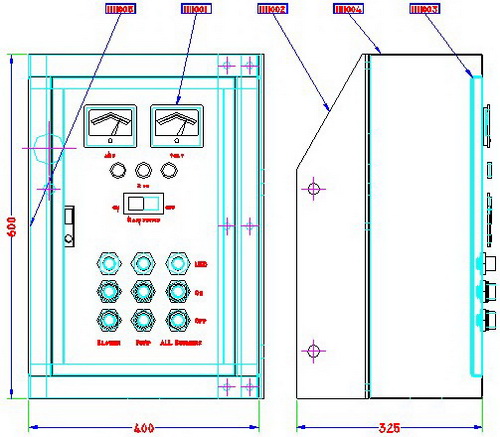

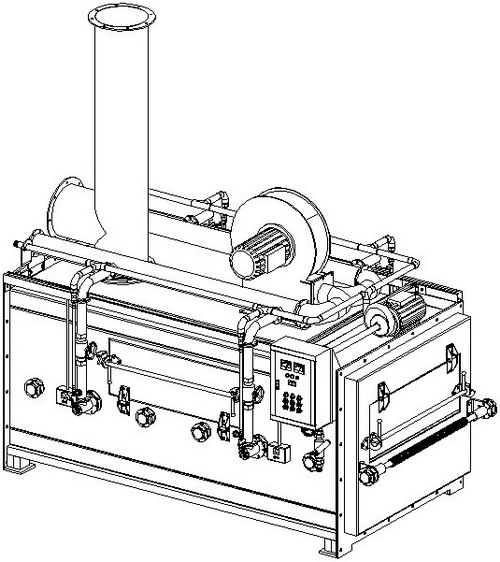

* control panel to operate and stop the furnace totally

* control of each burner is adjusted from valves near each burner

* electric power required for furnace is 20 kw 380 v 50 hz

* external fuel tank has to be connected to furnace fuel system

* temperature adjustment through control valves and wire speed

* furnace accepts 48 wire of 10 mm max. dia. and 1200 c° max. temp.
